- oc, helm command line tools installed
- Logged into OCP Cluster via the CLI and UI as kubeadmin
In this demo, you will get a taste of how Pelorus captures a change going through the application's delivery cycle.
- Install and configure Pelorus
- Install a sample application that Pelorus will measure
- Set a baseline of data for Pelorus measurements
- Create a new commits, and Github issues
- Watch as the metrics and trends change as new versions roll out
Understand that Pelorus should be used as a conversation tool to read the trends in metrics and react by making informed investments in the software delivery process.
Note: More information about the four key DORA metrics can be found at the Software Delivery Performance section
- install and configure Pelorus
- install a sample application
This is an optional step for developers that will setup a Python virtual environment and install prerequisite python and openshift cli tools and libraries.
cd pelorus
make dev-env
source .venv/bin/activate
make help
-
Create the pelorus namespace
oc create namespace pelorus -
Install the required granfa and prometheus operators
helm install operators charts/operators --namespace pelorus -
Wait for the operator install to complete
$ oc get pods -n pelorus NAME READY STATUS RESTARTS AGE grafana-operator-controller-manager-7678cc5c7c-spvls 2/2 Running 0 22s prometheus-operator-559d659944-fvsjg 1/1 Running 0 10s -
Install Pelorus
helm install pelorus charts/pelorus --namespace pelorus -
Wait for the Pelorus install to complete
$ oc get pods -n pelorus NAME READY STATUS RESTARTS AGE deploytime-exporter-1-deploy 0/1 Completed 0 93s deploytime-exporter-1-rwk5l 1/1 Running 0 90s grafana-deployment-55f77ccc8f-d7m92 2/2 Running 0 84s grafana-operator-controller-manager-7678cc5c7c-spvls 2/2 Running 0 4m5s prometheus-operator-559d659944-fvsjg 1/1 Running 0 3m53s prometheus-prometheus-pelorus-0 3/3 Running 1 (89s ago) 93s prometheus-prometheus-pelorus-1 3/3 Running 1 (89s ago) 93s -
Finally check the install
oc get all -n pelorus
-
Make a copy of the values.yaml file in the pelorus repo (raw link for curl-ing) and save it to /var/tmp/values.yaml
cp charts/pelorus/values.yaml /var/tmp/ -
Update the "exporters" section of the /var/tmp/values.yaml to match the following example:
exporters: instances: - app_name: deploytime-exporter exporter_type: deploytime extraEnv: - name: LOG_LEVEL value: DEBUG - name: NAMESPACES value: mongo-persistent - app_name: committime-exporter exporter_type: committime extraEnv: - name: LOG_LEVEL value: DEBUG - name: NAMESPACES value: mongo-persistent
Note: Documentation regarding values.yaml can be found on our readthedocs page.
-
Apply the updated values for Pelorus by executing:
helm upgrade pelorus charts/pelorus --namespace pelorus --values /var/tmp/values.yaml
Note: Please pause to allow the committime exporter pod to be deployed.
Pelorus should now be installed and configured to measure the todolist sample app. We'll have to deploy the sample application to view measurements from Pelorus's Grafana dashboard.
-
git clone the forked copy of konveyor/mig-demo-apps
git clone https://github.com/your_org/mig-demo-apps.git -
Install the todolist-mongo-go sample application
cd mig-demo-apps/apps/todolist-mongo-go export GITHUB_ORG=<YOUR_REAL_GITHUB_FORK_ORG> sed -i.original "s/your_org/${GITHUB_ORG}/g" mongo-persistent.yaml oc create -f mongo-persistent.yaml
The todolist application and mongo database should now build and deploy into the mongo-persistent namespace.
-
Check the build
oc get all -n mongo-persistent
Note: Please pause to allow the todolist pod to build and deploy.
-
Ensure that your github fork of mig-demo-apps is correctly set as the uri value in the todolist BuildConfig.
- kind: BuildConfig apiVersion: build.openshift.io/v1 metadata: name: todolist <snip> source: type: Git git: uri: https://github.com/weshayutin/mig-demo-apps.git ref: master
-
In your OpenShift Pelorus project page, open the link to granafa or get the link via the cli:
oc get route grafana-route -o=go-template='https://{{.spec.host | printf "%s\n" }}' -
Navigate to "pelorus / Software Delivery Performance - By App"
-
Select the todolist application
You should now see at least one measurement for "Lead time for Change" and "Deployment Frequency"
- Make changes to the application, e.g. replace a line to index.html
- commit changes to source control
- Watch the application redeploy with the changes to be captured by Pelorus
One can more easily watch how Pelorus works by automatically building and deploying the todolist app when a commit is pushed to Github by utizing Github's webhooks.
-
To get the build webhook URL you can navigate to the todolist BuildConfig details or via the cli:
oc describe buildconfig.build.openshift.io/todolist -n mongo-persistent
Note: The secret is hardcoded in the todolist manifest template to be:
4Xwu0tyAab90aaoasd88qweAasdaqvjknfrl3qwpo
- Navigate to https://github.com/your_org/mig-demo-apps/settings/hooks
- Paste the URL with the real secret replacing the text
- Toggle SSL as needed, for testing consider disabling.
- Content type: application/json
- Click, "Add webhook"
The following screenshot is the original todolist application prior to a change
-
The text "Enter an activity" does not seem clear, let's change that to "Add a todo"
cd mig-demo-apps/apps/todolist-mongo-go sed -i.bak 's/Enter an activity../Add a todo../g' index.html -
If you are happy with the change, commit and push
git add . git commit -m "update text box" git push origin master
-
Once the commit is pushed the application will automatically rebuild because we have setup the github webhook.
-
You will now see the todolist application start to rebuild
Note: The dashboard is avaiable by navigating to grafana via the url found with:
oc -n pelorus get route grafana-route -o json | jq -r '.spec.host'
And navigating Home(top left) -> pelorus -> Softare Delivery Performance
- Navigate to the Granfa Dashboard, Software Delivery Performance by App, set the interval to 15 minutes. Pelorus will now read the updated commit and register a new deploytime. You should now see a total for two deployments.
-

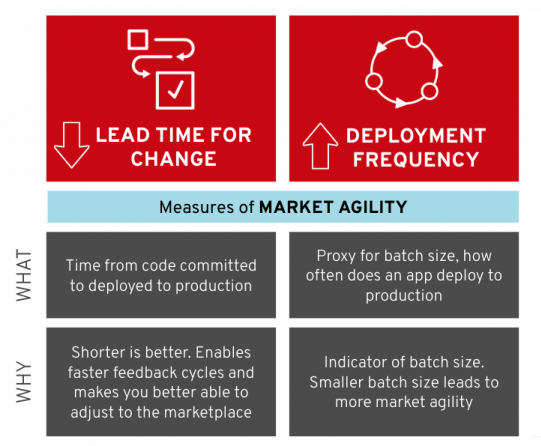

Lead Time for Change:
-
Lead Time = {deploy time} - {commit time}
-
The lead time for change should initially go down as we just pushed a commit. The time difference between changes to the original git repository and your personal forked repo will most likely cause this metric to go down.
-
-
Deployment Frequency:
-
Deployment Frequency = {number of deploys in a defined time frame}
-
There have been two deployments since this demonstration was started, the initial deployment and now the redeployment after pushing a change to the git repository. The deployment frequency should have gone up by 100% in the last 15 minutes. Once your initial deployment time is longer than 15 minutes in the past, you will find your interval has fallen by 50%.
-
Check the Pelorus committime output for the commit hash that was pushed:
git log -p -1
Compare the output with the following command:
curl $(oc get route -n pelorus committime-exporter -o=template='http://{{.spec.host | printf "%s\n"}}')
Also notice the built deployed image sha is visible via the deploytime-exporter
curl $(oc get route -n pelorus deploytime-exporter -o=template='http://{{.spec.host | printf "%s\n"}}')
You can now also check on your todolist application and see the updated text change "Add a todo"
If exporters are not functioning or deployed, no data will show up in the dashboard. It will look like the following:
- Please check the logs of exporter pod.

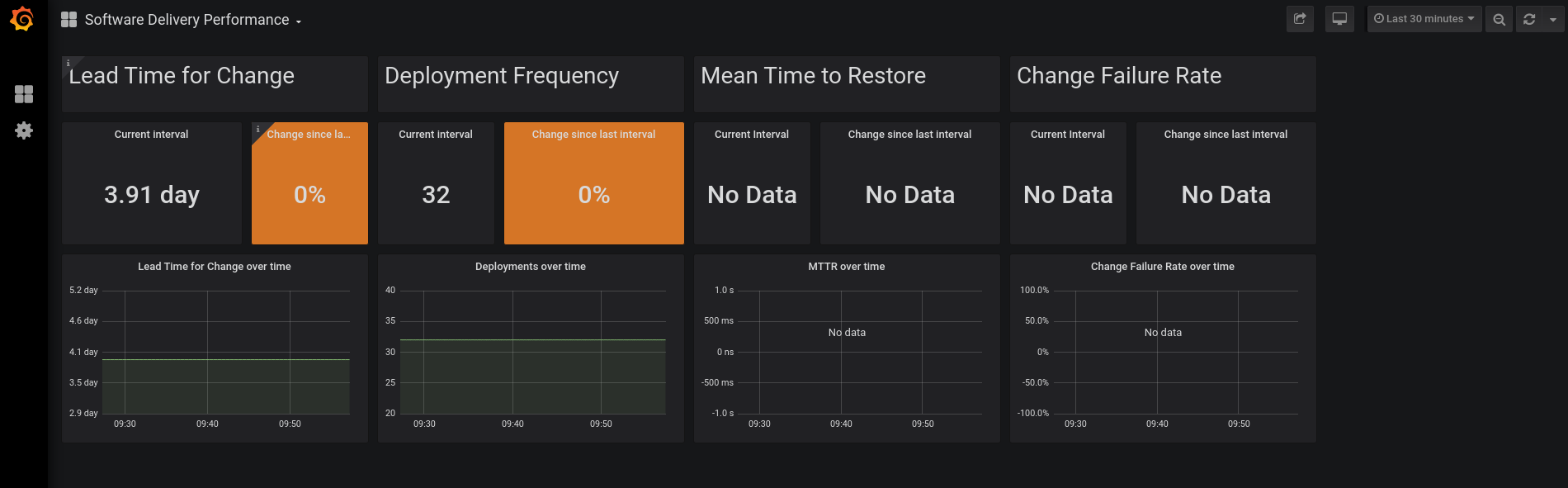

An "idle" state could resemble:
Note: More information about the four key DORA metrics can be found at the Software Delivery Performance section
- Github issues are enabled in https://github.com/your_org/mig-demo-apps/settings
- Create and resolve bugs in Github issues that exercise Pelorus metrics
- View the changes to the
Mean Time to RestoreandChange Failure Ratemetrics.
Note:
- A users Github personal access token is required
- The
PROJECTSkey's value is the fork of the mig-apps-demo repository.
-
Update the "exporters" section of the /var/tmp/values.yaml to match the following example:
exporters: instances: - app_name: deploytime-exporter exporter_type: deploytime extraEnv: - name: LOG_LEVEL value: DEBUG - name: NAMESPACES value: mongo-persistent - app_name: committime-exporter exporter_type: committime extraEnv: - name: LOG_LEVEL value: DEBUG - name: NAMESPACES value: mongo-persistent - app_name: failure-exporter exporter_type: failure extraEnv: - name: LOG_LEVEL value: DEBUG - name: PROVIDER value: github - name: TOKEN value: ghp_J<snip> - name: PROJECTS value: <your_org>/mig-demo-apps -
Documentation regarding values.yaml can be found in the configuration section. Apply the updated values for Pelorus by executing:
helm upgrade pelorus charts/pelorus --namespace pelorus --values /var/tmp/values.yaml
Note: Please pause to allow the failure exporter pod to build and deploy.
-
Check the output from the failure exporter. No bugs should be found at this time.
curl $(oc get route -n pelorus failure-exporter -o=template='http://{{.spec.host | printf "%s\n"}}')
Pelorus will utilize two tags to determine if a Github issue is associated with the todolist-mongo application. We'll need the default bug tag. Additionally, by default Pelorus requires that all issues associated with a particular application be labeled with the app.kubernetes.io/name=<app_name> label. This works the same way as the deployment configuration.
- Navigate to https://github.com/your_org/mig-demo-apps/issues
- Required Github issue tags:
bugapp.kubernetes.io/name=todolist
- Required Github issue tags:
Now we will create an issue in Github and set the appropriate labels.
Pelorus will register an issue as a deployment failure only if it is labeled as a bug and labeled with the application name app.kubernetes.io/name=todolist
- Create a Github issue and label it appropriately to register a failure.
- Now refresh the Grafana dashboard and you should see the Change Failure Rate go up.
- Let's now create a non critical bug. A bug that does not indicate a deployment failure in your todolist application. A the bug label however do not add the application label
-
Ensure that issue #2 is not impacting our failure rate metric by curl-ing the output of the failure exporter.
command:
curl $(oc get route -n pelorus failure-exporter -o=template='http://{{.spec.host | printf "%s\n"}}')
-
Issue #1 should be found in the output of the curl. Issue #2 will not be registered as a deployment failure because the issue is not tagged with
app.kubernetes.io/name=todolist
Notice the message failure_creation_timestamp. This indicates the time the issue was created.
output:
failure_creation_timestamp{app="todolist",issue_number="1"} *654704543e+09
- Now lets resolve issue #1 and see how that impacts our
Failure Rateand theMean Time to Restore
-
Check the output from the failure exporter again and we should see a
failure_resolution_timestamp, which indicates when a bug was closed.command:
curl $(oc get route -n pelorus failure-exporter -o=template='http://{{.spec.host | printf "%s\n"}}')output:
failure_creation_timestamp{app="todolist",issue_number="1"} *654704543e+09 failure_resolution_timestamp{app="todolist",issue_number="1"} *654705784e+09 -
Now we should also data in the
Mean Time to Restoremetric in Grafana
-
Mean Time to Restore:
-
Mean Time to Restore = Average( {failure_resolution_timestamp} - {failure_creation_timestamp} )
-
How long it takes to restore service when a service incident occurs.
-
-
Change Failure Rate:
-
Change Failure Rate = {number of failed changes} / {total number of changes to the system}
-
A key quality metric that measures what percentage of changes to production fail. It is crucial to have alignment on what constitutes a failure. The recommended definition is a change that either results in degraded service or subsequently requires remediation.
-
Note: Before starting please ensure pelorus has been uninstalled completely. The automated demo scripts expect that Pelorus is not installed and the Pelorus namespace is not present.
The Pelorus and todolist application can be installed automatically. Using the forked copy of mig-demo-apps referenced as https://github.com/<your_org>/mig-demo-apps, execute the following steps:
-
Setup the github webhook prior to execution
-
The Github webhook address should be:
https://api.cluster-<snip>.com:6443/apis/build.openshift.io/v1/namespaces/mongo-persistent/buildconfigs/todolist/webhooks/4Xwu0tyAab90aaoasd88qweAasdaqvjknfrl3qwpo/github
-
-
Enable Github Issues in the repository's settings prior to execution
- In order for the demo to fully succeed at least one Github issue must be present with the
bugandapp.kubernetes.io/name=todolistissue labels.
- In order for the demo to fully succeed at least one Github issue must be present with the
-
Execute
run-pelorus-e2e-testscd pelorus export KUBECONFIG=$PATH_TO_KUBECONFIG_FILE export TOKEN=<github_personal_access_token> make dev-env source .venv/bin/activate scripts/run-pelorus-e2e-tests -o <your_org> -e failure
Note: Please wait as Pelorus is installed and the todolist application are deployed.
-
Create a source code change to the todolist app and git push
-
If the Github webhook is enabled, wait for the rebuild or trigger the build manually in OpenShift.
-
Repeat with additional git commits
-
Create and close Github issues while ensuring the appropriate issue labels are set.
