Crowd Abnormal Behavior Detection

密集人群背景下人体异常行为检测算法

Intelligent behavior analysis system based on YOLOv8 & ByteTrack

🌐 English · 🇨🇳 简体中文 · 📖 Usage Docs · 🐞 Report Bug

📑 Table of Contents / 目录

Features
Demo
Quick Start
Project Structure
Installation
Weights
Usage
Performance
Utility Tools
Notes
Contributing
License
Acknowledgements

Real-time human abnormal behavior detection in crowded scenes — powered by Ultralytics YOLO and ByteTrack.

A graduation project that detects three categories of human abnormal behavior from video streams:

Fall Detection — pose estimation + ByteTrack tracking + trajectory analysis + temporal smoothing
Running Detection — object detection + ByteTrack tracking + pixel-velocity thresholding
Intrusion Detection — polygon zone configuration + foot-center / trajectory judgment

Features

🧠 Fall Detection

Detects human falls using YOLOv8-pose for keypoint extraction, ByteTrack for multi-object tracking, and trajectory-based temporal analysis with smoothing to suppress false positives.

🏃 Running Detection

Identifies individuals moving at abnormally high speeds using YOLO object detection combined with ByteTrack tracking and pixel-velocity computation against a configurable threshold.

🚫 Intrusion Detection

Monitors user-defined polygonal forbidden zones and triggers alerts when a person's foot center or trajectory enters the restricted area. Supports interactive zone calibration via tools/zone_selector.py.

Demo

Fall Detection

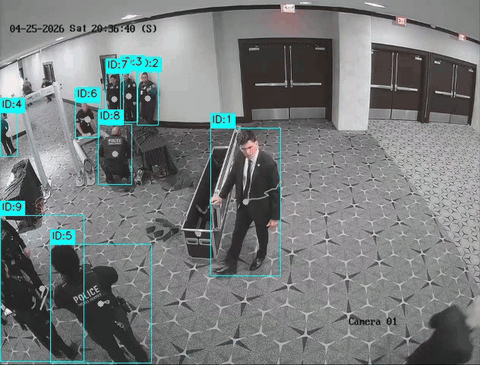

Running Detection

Intrusion Detection

Quick Start

git clone https://github.com/juzishazhou/crowd-abnormal-behavior-detection.git
cd crowd-abnormal-behavior-detection
pip install -r requirements.txt
python scripts/fall_detection.py --source assets/fall.mp4 --output outputs/fall_demo.mp4

Sample videos are provided in assets/. Weights are downloaded automatically on first run.

Try all three detectors with the sample videos:

# Fall detection
python scripts/fall_detection.py --source assets/fall.mp4 --output outputs/fall_demo.mp4

# Running detection
python scripts/running_detection.py --source assets/running.mp4 --output outputs/running_demo.mp4

# Intrusion detection (with built-in example zone)
python scripts/intrusion_detection.py --source assets/intrusion.mp4 --output outputs/intrusion_demo.mp4

Project Structure

crowd-abnormal-behavior-detection/
├── README.md
├── README_zh.md
├── LICENSE
├── requirements.txt
├── .gitignore
├── CITATION.cff
├── _common.py                       # Shared utilities (video I/O, keyframe extraction, etc.)
├── scripts/                         # Core detection scripts
│   ├── fall_detection.py            # Fall detection
│   ├── running_detection.py         # Running detection
│   └── intrusion_detection.py       # Forbidden zone intrusion detection
├── configs/                         # Configuration files
│   ├── bytetrack_fall.yaml          # ByteTrack config for fall detection
│   ├── bytetrack.yaml               # ByteTrack config for running detection
│   └── forbidden_zone.example.json  # Example forbidden zone polygon
├── tools/                           # Utility tools
│   ├── check_env.py                 # Environment checker
│   ├── zone_selector.py             # Interactive zone calibration
│   ├── export_alerts.py             # Alert export to JSON
│   ├── frame_viewer.py              # Frame-by-frame video viewer
│   ├── measure_fps.py               # FPS benchmark
│   ├── measure_pipeline.py          # Pipeline latency benchmark
│   ├── measure_tracking.py          # Tracking performance benchmark
│   └── run_eval.py                  # Model evaluation
├── docs/                            # Documentation
│   └── USAGE.md                     # Detailed usage guide
├── assets/                          # Static assets
│   ├── fall.mp4                     # Fall detection sample video
│   ├── running.mp4                  # Running detection sample video
│   ├── intrusion.mp4                # Intrusion detection sample video
│   └── demo/                        # Demo GIFs for README
│       ├── fall_demo.gif
│       ├── running_demo.gif
│       └── intrusion_demo.gif
└── outputs/                         # Local outputs (gitignored)
    └── .gitkeep                     # Placeholder to keep directory visible

Installation

Python: 3.8 or later recommended.

git clone https://github.com/juzishazhou/crowd-abnormal-behavior-detection.git
cd crowd-abnormal-behavior-detection
pip install -r requirements.txt

Dependencies

Package	Purpose
`ultralytics>=8.4.65`	YOLO inference + tracking
`opencv-python>=4.13.0`	Video I/O + visualization
`numpy>=2.4.4`	Numerical operations
`torch>=2.12.0`	PyTorch backend
`shapely>=2.1.2`	Precise polygon ops (optional; intrusion detection has fallback)
`psutil>=7.2.2`	System info checks
`matplotlib>=3.10.9`	Figure plotting

Weights

This repository does not include .pt weight files.

Official Pre-trained Weights

After pip install ultralytics, weights (e.g., yolov8n.pt, yolov8n-pose.pt, yolov8s.pt) are downloaded automatically from Ultralytics servers on first run.

You may also manually place them under weights/ (this directory is gitignored):

mkdir weights
# Download from https://github.com/ultralytics/assets/releases

Fine-tuned Weights

Weights fine-tuned on the WiderPerson dataset are large (~225 MB) and not included in this repo.

TODO: Provide download links via GitHub Releases.

Usage

All scripts are run from the project root.

Fall Detection

python scripts/fall_detection.py --source <video_path> --output outputs/fall_demo.mp4

Expected: The output video will highlight falling persons with bounding boxes and alert labels, and optionally extract keyframes for further analysis.

Model: auto-uses weights/yolov8n-pose.pt (pose estimation)
Tracker: configs/bytetrack_fall.yaml
Optional: --extract-keyframes to extract fall keyframes

Running Detection

python scripts/running_detection.py --source <video_path> --output outputs/running_demo.mp4

Expected: Fast-moving individuals will be highlighted in the output video with speed annotations, and all running events are logged to outputs/running_events.json.

Model: auto-uses weights/yolov8s.pt (object detection)
Tracker: configs/bytetrack.yaml
Logs: outputs/running_events.json (JSON event log with confidence scores)
Sensitivity: --conf-trigger 0.40 (lower = more detections, higher = fewer false positives)
Quick test: python scripts/running_detection.py --source assets/running.mp4

Forbidden Zone Intrusion Detection

Two-step workflow:

# Step 1: Interactive zone calibration
python tools/zone_selector.py --source <video_path> --output configs/forbidden_zone.json

# Step 2: Run detection
python scripts/intrusion_detection.py --source <video_path> --zone configs/forbidden_zone.json --output outputs/intrusion_demo.mp4

Expected: The output video will display visual alerts when a person's foot center or trajectory enters the configured forbidden zone.

If --zone is omitted, a built-in example polygon (suitable for 1280×720 center area) is used.

See docs/USAGE.md for full parameter details.

Performance

Benchmark results measured on a laptop with NVIDIA GeForce RTX 3050 (4 GB), CUDA 12.6, PyTorch 2.12.0:

Test	Resolution	FPS	Model
Detection-only (fall video)	720×1280	26.6	YOLOv8n-pose
Full pipeline (running video)	632×480	71.5	YOLOv8s

Benchmark tools: tools/measure_fps.py and tools/measure_pipeline.py.

✅ Real-time ready — The full pipeline achieves 26–71 FPS on an RTX 3050 (4 GB), sufficient for real-time video surveillance analysis without frame dropping.

Utility Tools

Tool	Command	Purpose
Env Check	`python tools/check_env.py`	Check Python / PyTorch / Ultralytics versions
Zone Selector	`python tools/zone_selector.py --source <video> --output configs/zone.json`	Interactive forbidden zone calibration
Alert Export	`python tools/export_alerts.py --video <video>`	Batch export alerts as JSON
Frame Viewer	`python tools/frame_viewer.py <video_path>`	Step through video frame by frame
FPS Benchmark	`python tools/measure_fps.py --video <video> --weights <weights.pt>`	Measure detection-only FPS
Pipeline Latency	`python tools/measure_pipeline.py --video <video> --weights <weights.pt>`	Measure per-stage latency
Tracking Benchmark	`python tools/measure_tracking.py --video <video> --weights <weights.pt>`	Measure tracking metrics
Model Eval	`python tools/run_eval.py --weights <model.pt> --data <dataset.yaml>`	Evaluate mAP / PR curves

Note: run_eval.py, export_alerts.py, and measure_*.py are optional advanced tools that require trained weights or datasets.

Notes

Not included: datasets, weight files (.pt), training results
Sample videos for quick testing are already provided in assets/. Use them via --source assets/fall.mp4 etc.
Provide your own input videos via --source when testing with custom footage
Forbidden zone coordinates should be calibrated via tools/zone_selector.py for your specific video resolution
Place weight files in weights/ to use them (this directory is gitignored)

🤝 Contributing

Contributions are welcome! Whether you'd like to report a bug, suggest a feature, or submit a pull request, your help makes this project better.

Found a bug? Open an issue
Want a feature? Start a discussion in the issues section
Submit code? Fork the repo, create a feature branch, and send a PR

Please ensure your code follows the existing style and includes appropriate documentation.

License

This project is open-sourced under AGPL-3.0.

Built on Ultralytics YOLO (AGPL-3.0), and carries forward its license.

Copyright (C) 2026 juzishazhou

Acknowledgements

Ultralytics YOLO — State-of-the-art object detection framework
ByteTrack — Multi-object tracking algorithm
WiderPerson — Dense pedestrian detection dataset
