SEGGER-RTT Client for J-LINK and DAPLink
To run software, you need python 3.6+, pyqt5 and pyqtchart.
To use DAPLink, you need additional pyusb for CMSIS-DAPv2 and another usb-backend for CMSIS-DAPv1 (hidapi or pywinusb for windows, hidapi for mac, pyusb for linux).
pip install PyQt5 PyQtChart pyusb hidapi six pyelftools

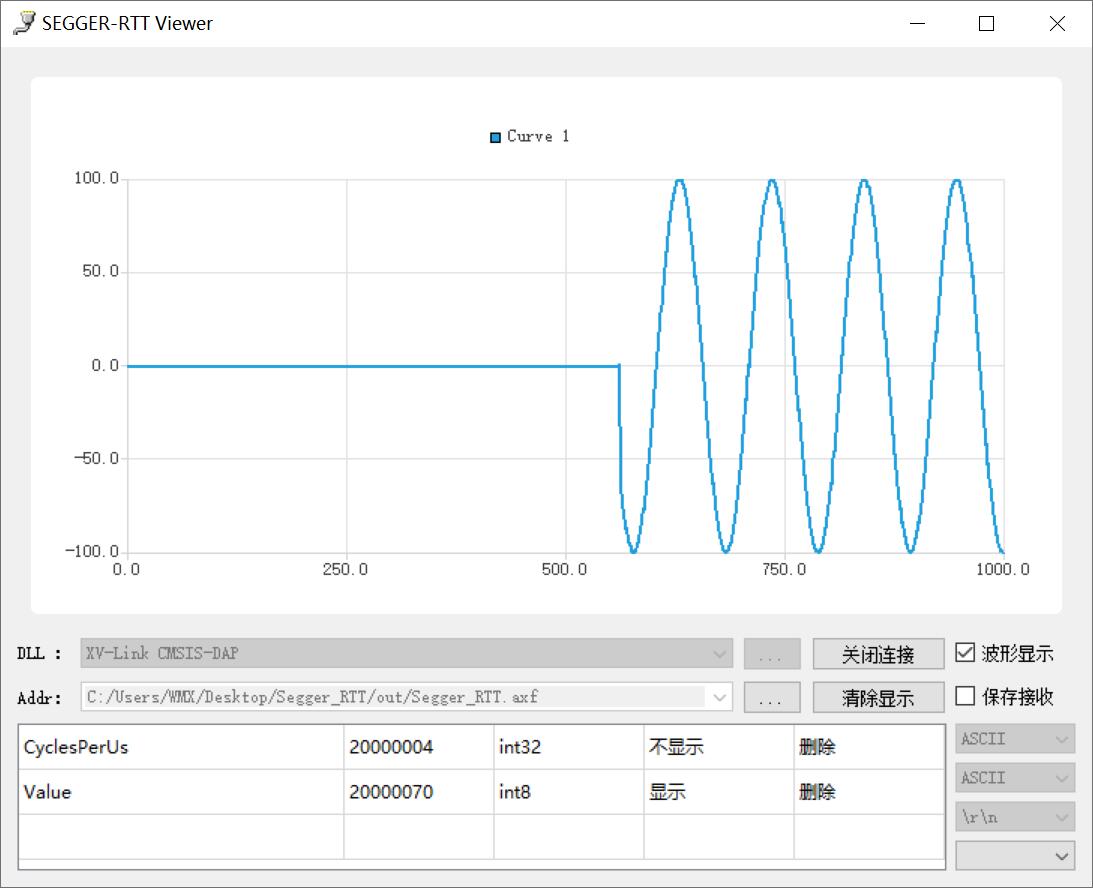

data format for wave show:
- 1 wave: 11, 22, 33,
- 2 wave: 11 22, 33 44, 55 66,
- 3 wave: 11 22 33, 44 55 66, 77 88 99,
- 4 wave: 11 22 33 44, 55 66 77 88, 99 11 22 33,
When select elf file path in address combobox, RTTView read selected variable directly from memory at specified address, rather from RTT buffer.
Double-click the table cell to bring up the variable adding dialog.
